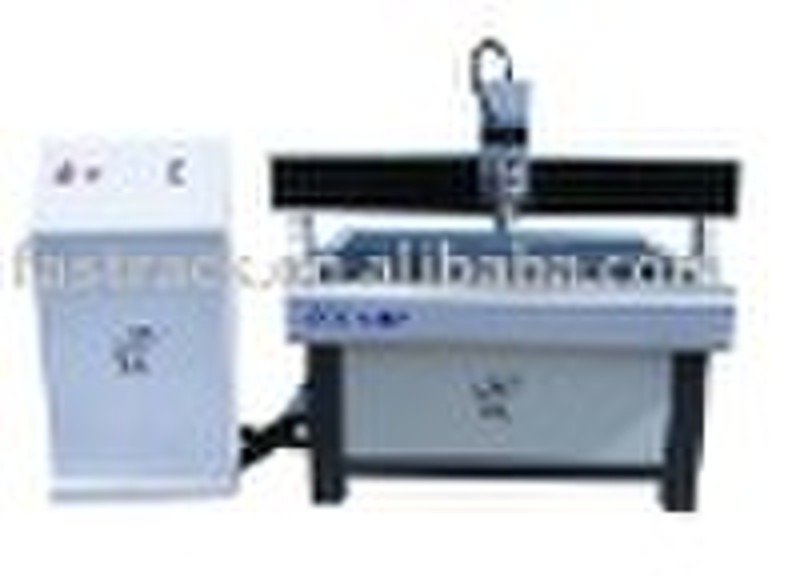

JCG1212 Advertising CNC Carving Machine
Fastrack CNC
Contact person
Basic Information
| Place of Origin | Shandong China (Mainland) |
|---|---|
| Brand Name | FASTRACK |
| Model Number | JCG1212 |
JCG1212 Advertising CNC Carving Machine Suitable for: Aluminium industries, aluminum, aluminum-plastic plates, aluminum honeycomb panels, aluminum, 3 D hollow cutting, wave plate production, man-made sheet, LED, Groove word cutting on neon light ,plastic Lightboxes cutting. Acrylic, copper boards, PVC boards, artificial stone, MDF board, and other metal processing.PARAMETERSNO.DescriptionParameter1X-Y-Z Working Area1200x1200x120mm2Table Size1340X1540mm3X-Y-Z Traveling Positioning Accuracy±0.05/300mm4X-Y-Z repositioning Positioning Accuracy±0.04mm5Table SizeT-slot Extrusions6FrameCast Steel7X, Z StructureHiwin Ball Screw8Y StructureBall Screw and Hiwin Rail Shaft Linear Bearings9Max. Power Consumption(Without spindle)1.2KW10Max.Rapid Travel Rate10000mm/min11Max.Working Speed6000mm/min12Spindle Power Motor1.5Kw self-coolant spindle13Spindle Speed0-24000RPM14Drive MotorsStepper Motors15Working VoltageAC220V/50/60Hz (Option: 380V)16Command LanguageG Code17Operating SystemDSP System (Mach3 PC Software)18InterfaceUSB19Flash Memory128M (U Disk)20ColletER1621X-Y Resolution<0.01mm22Software CompatabilityUcancam software, Type3 Software, (Option:Artcam Software)23Running EnvironemtTemperature: 045 Relative humidity: 30%75%24Packing Size1850x1850x1450mm25Net Weight380KG26Gross Weight500KG
Delivery terms and packaging
Packaging Detail: Wooden case Delivery Detail: 7--15 lead time after down payment
Port: Any port of China
